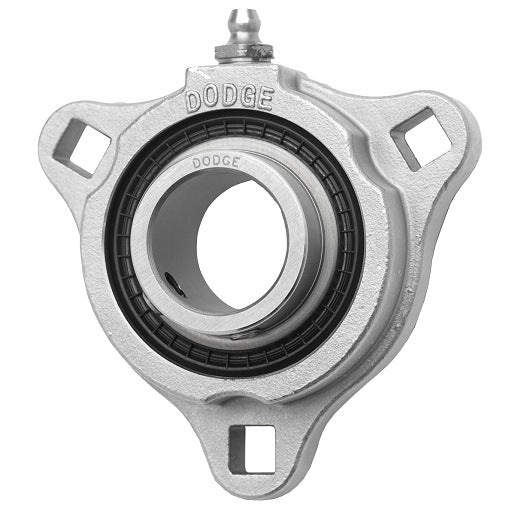

Dodge LF-SCEZ-104S-SHSS Light Duty Stainless Steel 3-Bolt Flange Unit

Product Description

The Dodge LF-SCEZ-104S-SHSS is a light duty stainless steel 3-bolt flange unit designed for reliable performance in various applications. This unit features a one point twenty-five inch shaft diameter and is made from stainless steel for durability.

• 1.25 inch shaft diameter
• 3-bolt flange design
• Solid stainless steel housing

Product Highlights

This flange unit is ideal for washdown environments, ensuring compliance with sanitation standards. The solid construction prevents contamination, making it suitable for food processing and other sensitive applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: LF-SCEZ-104S-SHSS

Technical Specifications

• Shaft Diameter: 1.25 in
• Insert Material: Stainless Steel
• Housing Material: Stainless Steel
• Locking Device: Setscrew
• Sensor Ready: Adapter Required
• Suitable For Washdown: Yes
• Greasable: Yes
• Bolt Diameter: 0.406 in
• Bearing Type: Ball
• Housing Construction: Solid
• Grease Name: MobilGrease FM222
• Ball Bearing Series: 206 Series
• Expansion Capability: Fixed
• Suitable for High Temperature: No
• Bolt Circle Diameter: 3.56 in
• Lubrication: Grease
• Duty Type: Light Duty
• Bore Length: 1.52 in
• Flange Type: 3-Bolt Flange
• Weight: 1.8 LB
• EAN or UPC: 782476478841
