Dodge INSUN2300R Unisphere Spherical Roller Bearing Insert 300R

Product Description

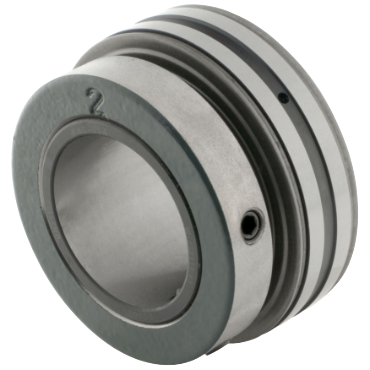

The Dodge INS-UN2-300R is a Unisphere Spherical Roller Bearing Insert designed for heavy-duty applications. This insert features a high capacity double row spherical bearing housed in a durable and compact design.

• 3 inch inner diameter
• 130 mm outer diameter
• Heavy-duty construction

Product Highlights

The insert is equipped with Springlok setscrew mounting and is factory lubed, sealed, and adjusted for reliability. The larger roller design provides enhanced load capacity while ensuring smooth operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: INS-UN2-300R

Technical Specifications

• Locking Device: Springlok Collar
• Lubrication: Relubricatable
• Material: Steel
• Inch/Metric: Inch Bore
• Length Through Bore: 2.45313 inches
• O.D.: 130 mm
• Seal Type: Contact Seals
• O.D. Type: Spherical
• Rolling Element: Spherical Roller Bearing
• Outer Ring Width: 1.2705 inches
• Overall Width: 2 29/64 inches
• Enclosure: Double Sealed
• I.D.: 3 inches
• Bore Type: Round Bore
• Bearing Type: Spherical Roller Bearing
• Duty: Heavy-Duty
• Weight: 4.6 LB
• EAN or UPC: 782475884537
