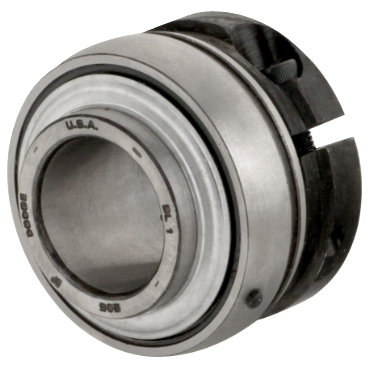

Dodge INSDL104CR D-Lok DL Series Bearing Insert

Product Description

The Dodge INSDL104CR is a D-Lok DL Series Bearing Insert designed for various applications, including air handling and unit handling. This bearing insert features a one and one-quarter inch inside diameter and a seventy-two millimeter outside diameter. It is built with a double-sealed design for protection against contaminants.

• Precision hardened inner and outer rings
• DualGuard sealing system for enhanced protection
• Anti-rotation pin for easy insert replacement

Product Highlights

The Dodge INSDL104CR provides reliable performance with its rugged housing and concentric clamp collar that locks the bearing to the shaft concentrically to reduce vibration.

Product Information

Standard Information

• Brand: Dodge
• Part Number: INSDL104CR

Technical Specifications

• Inner Diameter: 1 1/4 in
• Outer Diameter: 72 mm
• Outer Ring Width: 19 mm
• Seal Type: Contact Seals
• Material: Steel, Corrosion Resistant
• Weight: 1.587 LB
• Duty: Standard-Duty
• Lubrication: Relubricatable
