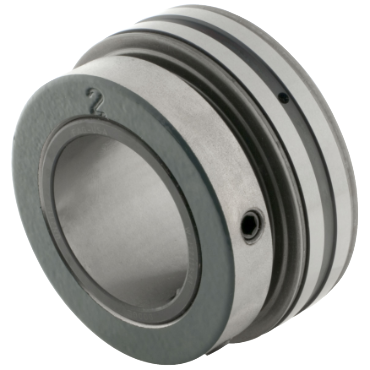

Dodge INS-UN2-215R Unisphere Spherical Roller Bearing Insert

Product Description

The Dodge bearing with MPN INS-UN2-215R features a double row spherical design that delivers high capacity in a compact housing. It is designed for optimal performance within various industrial applications.

• High capacity with double row spherical bearing design
• Springlok collar for secure mounting
• Factory lubricated and sealed for durability

Product Highlights

This product is suitable for numerous applications including conveyor systems, material handling, and rotating machinery.

Product Information

Standard Information

• Brand: Dodge
• MPN: INS-UN2-215R

Technical Specifications

• Locking Device: Springlok Collar
• Bearing Type: Spherical Roller Bearing
• Outer Ring Width: 1.2705 inches
• O.D. Type: Spherical
• Rolling Element: Spherical Roller Bearing
• Inch/Metric: Inch Bore
• Length Through Bore: 2.45313 inches
• I.D.: 2 15/16 inches
• O.D.: 130 mm
• Duty: Heavy-Duty
• Enclosure: Double Sealed
• Overall Width: 2 29/64 inches
• Bore Type: Round Bore
• Material: Steel
• Seal Type: Contact Seals
• Lubrication: Relubricatable
• Weight: 4.8 lbs
• EAN or UPC: 782475884209
