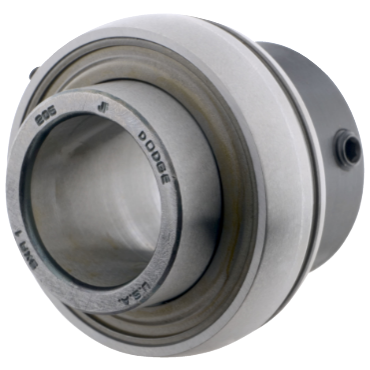

Dodge INS-SXR-112 SXR Normal-Duty Bearing Insert

Product Description

The Dodge INS-SXR-112 is a SXR Normal-Duty Bearing Insert designed for various applications including textile, agriculture, food handling, and more. This insert features a diameter of one and three-quarter inches and a steel build for durability.

• Precision-hardened inner ring for resistance to cracking
• DualGuard sealing system for enhanced contaminant protection
• Self-locking collar design for easy installation

Product Highlights

This bearing insert is suitable for standard-duty applications and ensures efficient operation with reduced vibration.

Product Information

Standard Information

• Brand: Dodge
• Part Number: INS-SXR-112

Technical Specifications

• Material: Steel
• Overall Width: 2 7/32 inches
• I.D.: 1 3/4 inches
• Length Through Bore: 2.21875 inches
• Seal Type: Contact Seals
• O.D.: 85 mm
• Duty: Standard-Duty
• Inch/Metric: Inch Bore
• Outer Ring Width: 22 mm
• Bore Type: Round Bore
• Rolling Element: Ball Bearing
• Bearing Design: Non-Expansion
• Lubrication: Relubricatable
• Enclosure: Double Sealed
• Locking Device: Eccentric Locking Collar
• Weight: 1.79 LB
• EAN or UPC: 782475232338
