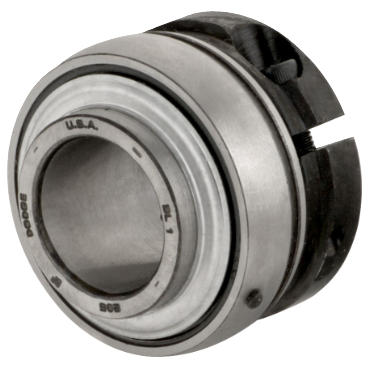

Dodge INS-DL-108-CR D-Lok DL Series Bearing Insert

Product Description

The Dodge INS-DL-108-CR is a D-Lok DL Series bearing insert designed for various applications including air handling, unit handling, food processing, forest products, and paper manufacturing. The product features inner and outer rings that are precision hardened and honed, providing wear resistance and quiet operation. The bearing insert is equipped with a DualGuard sealing system that includes a single lip contact seal and a patented rubberized flinger, improving protection against contaminants.

• Precision hardened inner and outer rings
• DualGuard sealing system for enhanced contaminant protection
• Rugged housing with solid feet for easy installation

Product Highlights

The patented Maxlife cage maintains grease pockets around the balls to reduce grease washout, ensuring cooler operation. An anti-rotation pin facilitates easier insert replacement without needing to change grease fittings or location pins. The D-LOK collar locks the bearing to the shaft without marring or burning, offering a clamping force that minimizes vibration.

Product Information

Standard Information

• Brand: Dodge
• Part Number: INS-DL-108-CR

Technical Specifications

• Duty: Standard-Duty
• Seal Type: Contact Seals
• Locking Device: Concentric Clamp Collar
• Enclosure: Double Sealed
• Bearing Type: Ball Bearing
• Lubrication: Relubricatable
• Weight: 1.92 LB
• EAN or UPC: 782475985050
