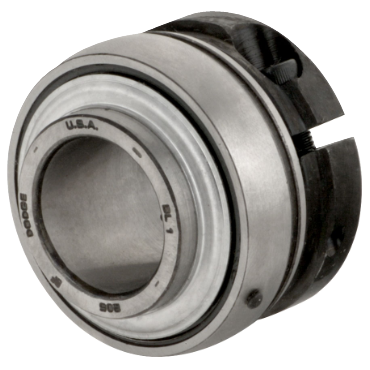

Dodge INS-DL-103 D-Lok DL Series Bearing Insert - 1 3/16 in ID

Product Description

The Dodge INS-DL-103 is a D-Lok DL Series Bearing Insert designed for reliable performance in various applications. This bearing insert features a 1 3/16 inch inner diameter and is built to accommodate standard-duty operations.

• Precision hardened and honed inner and outer rings
• DualGuard sealing system for contaminant protection
• Rugged housing with solid feet for easy installation

Product Highlights

This bearing insert is ideal for air handling, food processing, and forest products. It provides a 360-degree clamping force, reducing vibration and enhancing overall stability.

Product Information

Standard Information

• Brand: Dodge
• MPN: INS-DL-103

Technical Specifications

• Outer Ring Width: 18 mm
• O.D.: 62 mm
• I.D.: 1 3/16 in
• Overall Width: 1 9/16 in
• Material: Steel
• Locking Device: Concentric Clamp Collar
• Seal Type: Contact Seals
• Weight: 0.93 LB
• EAN or UPC: 782475891627
