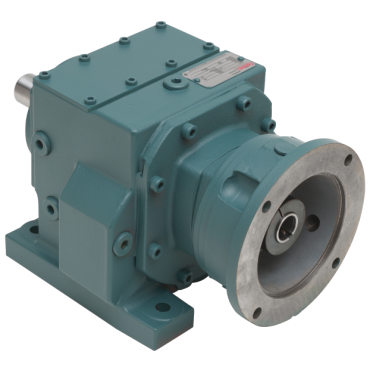

Dodge H6C21S01140 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H6C21S01140 is a Quantis ILH C-Face Inline Helical Reducer designed for high performance in demanding applications. This reducer features a modular design that allows for easy installation and maintenance. It is built to perform under higher torque conditions and fits seamlessly with existing equipment due to its dimensionally interchangeable structure. The clamp collar input offers a compact solution while maintaining excellent strength thanks to the cast gray iron construction.

• Modular design for easy setup
• Compact housing to save space
• Interchangeable with major competitors

Product Highlights

This reducer is a perfect choice for those needing reliable performance in a compact size. Ideal for various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: H6C21S01140

Technical Specifications

• Frame Size: 210TC
• Unit Size: 68
• Output RPM @ 1750 RPM Input: 154 RPM
• Nominal Ratio: 11
• Actual Ratio: 11.4
• Weight: 145.0 LB
• Input Configuration: C-Face Clamp Collar
• Output Configuration: Inline Solid Shaft
