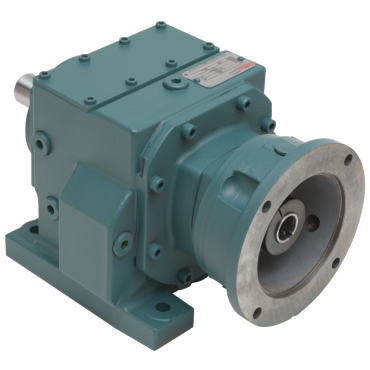

Dodge H6C21S00422 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H6C21S00422 is a Quantis ILH C-Face Inline Helical Reducer. It features a compact housing design and is dimensionally interchangeable with major competitors.

• Compact housing design
• Clamp collar for easy installation
• Constructed of class 30 gray iron

Product Highlights

This helical reducer is known for higher torque ratings and modular design, suitable for various applications requiring reliable reduction.

Product Information

Standard Information

• Brand: Dodge
• MPN: H6C21S00422

Technical Specifications

• Frame Size: 210TC
• Output Shaft Size: 1 5/8 in
• Input Shaft Size: 1 3/8 in
• Output RPM @ 1750 rpm Input: 415 rpm
• Housing Material: Cast Iron
• Lubrication: Mobil 630
• Actual Ratio: 4.22
• No. of Reductions: 2
• Box Width: 10.35 in
• Box Height: 10.58 in
• Box Length: 15.33 in
• Weight: 138.0 LB
• EAN: 782476024475
• Base to Shaft Center Height: 4.53 in
