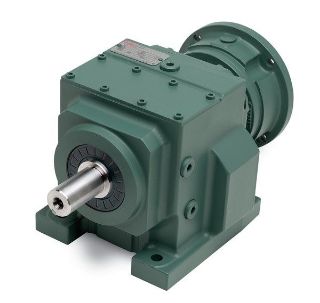

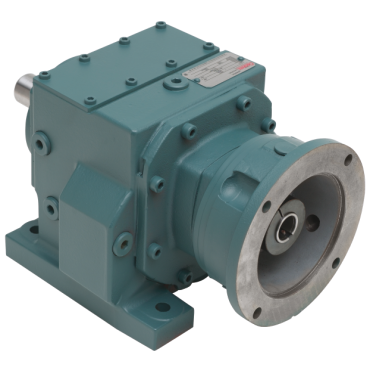

Dodge H6C14S05991 Quantis ILH C-Face Inline Helical Reducer 3.28 hp

Product Description

The Dodge H6C14S05991 is a Quantis ILH C-Face Inline Helical Reducer designed for reliability and performance in various applications. This reducer features a modular design that allows for flexibility in setups.

• Input Power: 3.28 hp
• Output Torque: 7,081.00 inch-lb
• Output Configuration: Parallel Shaft

Product Highlights

This reducer offers compact housing design and higher torque ratings, making it suitable for heavy-duty applications. The clamp collar input enhances adaptability for different setups, while its cast iron construction ensures durability and strength.

Product Information

Standard Information

• Brand: Dodge
• MPN: H6C14S05991

Technical Specifications

• Output Shaft Size: 1 5/8 inches
• Box Width: 10.35 inches
• Frame Size: 140TC
• Base to Shaft Center Height: 4.53 inches
• Box Height: 10.58 inches
• Box Length: 12.64 inches
• Actual Ratio: 59.91
• Lubrication Type: Mobil 630
• Number of Reductions: 3
• Housing Material: Cast Iron
• Input Shaft Size: 7/8 inches
• Weight: 106.0 LB
