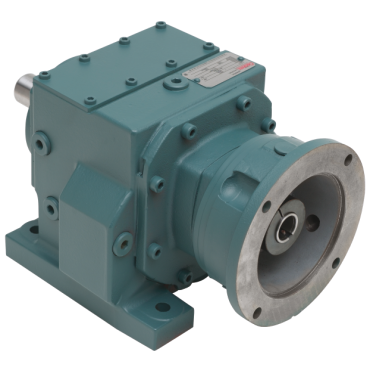

Dodge H4C18S02874 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H4C18S02874 is a Quantis ILH C-Face Inline Helical Reducer designed for various industrial applications. Its modular design allows for more versatility and customization in configuration.

• Size 48 helical reducer with a frame size of 180TC
• 28.74:1 gear ratio for efficient performance
• Constructed from durable cast iron for long-lasting use

Product Highlights

This helical reducer features a compact housing that is dimensionally interchangeable with major competitors, making it an ideal choice for those looking to enhance system performance without major adjustments.

Product Information

Standard Information

• Brand: Dodge
• MPN: H4C18S02874

Technical Specifications

• Input (Shaft or Bore) Size: 1 1/8 inches
• Frame Size: 180TC
• Bolt Pattern: 6.50 x 5.32 inches
• Box Width: 8.66 inches
• Output (Shaft or Bore) Size: 1 1/4 inches
• Lubrication: Mobil 630
• Output Configuration: Parallel Shaft
• Input Configuration: C-Face Quilled
• Output RPM @ 1750 rpm Input: 61 rpm
• Actual Ratio: 28.74
• No. of Reductions: 2
• Base to Shaft Center Height: 4.53 inches
• Unit Size: 48
• Nominal Ratio: 29
• Box Length: 11.07 inches
• Housing Material: Cast Iron
• Weight: 55.0 LB
• EAN or UPC: 782476024314
