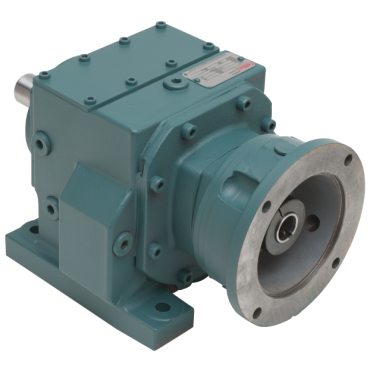

Dodge H4C14S03706 Quantis ILH C-Face Inline Helical Reducer

Brand: DODGE
SKU: H4C14S03706
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 55 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Dodge H4C14S03706 is a Quantis ILH C-Face Inline Helical Reducer. This product is designed for efficient power transmission. It features a compact design and offers high torque ratings.

  • Modular design for easy installation
  • Constructed with durable cast iron
  • Higher ratio capabilities for performance efficiency

Product Highlights

This helical reducer is ideal for applications requiring reliable torque transfer.

Product Information

Standard Information

  • Brand: Dodge
  • MPN: H4C14S03706
Technical Specifications
Output (Shaft or Bore) Size
1 1/4 in
Box Length
10.73 in
Frame
140TC
Unit Size
48
Housing Material
Cast Iron
Box Width
8.66 in
Bolt Pattern
6.50 x 5.32
Base to Shaft Center Height
4.53 in
Actual Ratio
37.06
Output Configuration
Inline Solid Shaft
No. of Reductions
2
Nominal Ratio
40
Box Height
8.73 in
Input (Shaft or Bore) Size
7/8 in
Output RPM @ 1750 RPM Input
47 RPM
Lubrication
Mineral Mobil 600
Input Configuration
C-Face Clamp Collar
Frame Size
140TC
Weight
55.0 LB
EAN or UPC
782476295400
