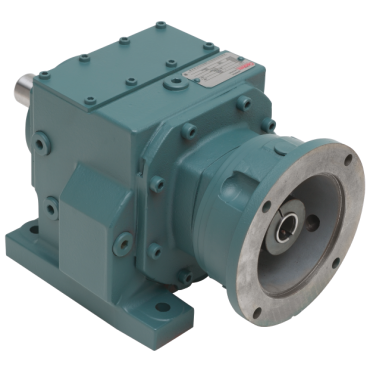

Dodge H4C14S00428 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H4C14S00428 is a Quantis ILH C-Face Inline Helical Reducer designed for effective power transmission. This reducer features a modular design and provides higher torque ratings. It is dimensionally interchangeable with major competitors and includes a compact housing design.

• Size forty-eight helical reducer
• Four point twenty-eight ratio
• Clamp collar input

Product Highlights

This inline helical reducer is suitable for various applications, especially where space is limited and high efficiency is required.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101491416

Technical Specifications

• Output RPM @ 1750 RPM Input: 409 RPM
• Output Configuration: Parallel Shaft
• No. of Reductions: 2
• Input Configuration: C-Face Quilled
• Input Size: 7/8 in
• Frame Size: 140TC
• Box Height: 8.73 in
• Nominal Ratio: 4
• Box Width: 8.66 in
• Unit Size: 48
• Actual Ratio: 4.28
• Housing Material: Cast Iron
• Box Length: 10.73 in
• Bolt Pattern: 6.50 x 5.32
• Base to Shaft Center Height: 4.53 in
• Output Size: 1 1/4 in
• Lubrication: Mobil 630
• Weight: 55.0 LB
• EAN or UPC: 782476024062
