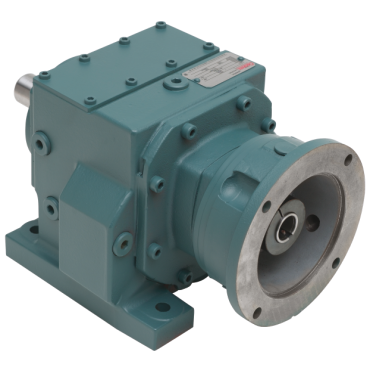

Dodge H3C56S02167 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H3C56S02167 is a Quantis ILH C-Face Inline Helical Reducer designed for high efficiency and durability. It features a modular design with higher torque ratings and a compact housing. This reducer is dimensionally interchangeable with major brands, making it versatile for various applications.

• Size thirty-eight helical reducer
• Twenty-one point sixty-seven to one gear ratio
• Four-bolt C-face configuration

Product Highlights

This helical reducer provides a reliable solution for drive applications requiring space efficiency and optimal performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: H3C56S02167

Technical Specifications

• Frame Size: 56C
• Actual Ratio: 21.67
• Input Configuration: C-Face Clamp Collar
• Output Configuration: Inline Solid Shaft
• Unit Size: 38
• Housing Material: Cast Iron
• Weight: 41.4 LB
• Input (Shaft Size): 5/8 in
• Output (Shaft Size): 1 in
• Output RPM at 1750 RPM Input: 81 RPM
• Dimensions: Box Height 6.21 in, Box Width 6.42 in, Box Length 8.98 in
