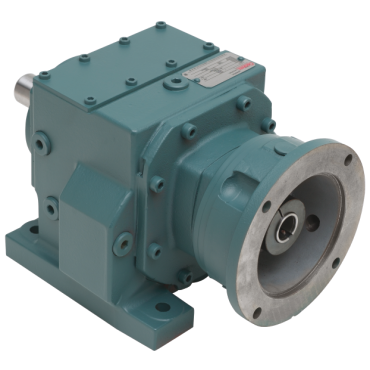

Dodge H3C56S01418 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H3C56S01418 is a Quantis ILH C-Face Inline Helical Reducer designed for efficient and reliable operation in various applications. This reducer features a modular design which allows for flexible configurations and installations. It is specifically constructed with a clamp collar for compact fitting and easy connection.

• Output size of one inch
• Frame size of 56C
• Torque rating suitable for demanding tasks

Product Highlights

This reducer provides higher torque ratings and a compact housing, making it dimensionally interchangeable with other leading brands.

Product Information

Standard Information

• Brand: Dodge
• MPN: H3C56S01418

Technical Specifications

• Output (Shaft or Bore) Size: 1 inch
• Box Height: 6.21 inches
• Frame Size: 56C
• Base to Shaft Center Height: 3.54 inches
• Unit Size: 38
• Box Length: 8.98 inches
• Nominal Ratio: 14
• Output RPM @ 1750 rpm Input: 123 rpm
• Box Width: 6.42 inches
• Input Configuration: C-Face Quilled
• Bolt Pattern: 5.12 x 4.33
• Housing Material: Cast Iron
• Input (Shaft or Bore) Size: 5/8 inches
• No. of Reductions: 2
• Output Configuration: Parallel Shaft
• Lubrication: Mobil 630
• Actual Ratio: 14.18
• Weight: 45.0 LB
• EAN or UPC: 782476023775
