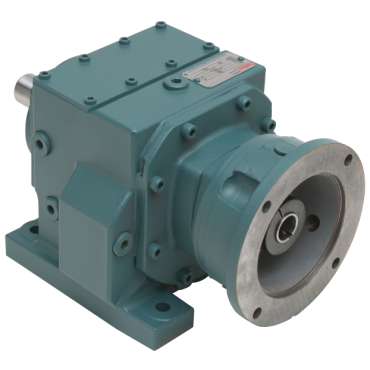

Dodge H3C56S00970 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H3C56S00970 is a Quantis ILH C-Face Inline Helical Reducer designed for various industrial applications. This reducer offers a robust solution for reducing speed and increasing torque. It is ideal for those seeking a compact and efficient method to improve system performance.

• Modular design for flexible applications
• Higher torque ratings support demanding tasks
• Constructed with durable cast iron for longevity

Product Highlights

This helical reducer features a C-Face clamp collar type input and a single solid shaft output, ensuring reliable operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: H3C56S00970

Technical Specifications

• Unit Size: 38
• No. of Reductions: 2
• Input Configuration: C-Face Clamp Collar
• Housing Material: Cast Iron
• Base to Shaft Center Height: 3.54 inches
• Input Size: 5/8 inches
• Frame: 56C
• Output Size: 1 inches
• Bolt Pattern: 5.12 x 4.33 inches
• Box Height: 6.21 inches
• Actual Ratio: 9.7
• Lubrication: Mineral Mobil 600
• Output RPM @ 1750 RPM Input: 180 RPM
• Box Length: 8.98 inches
• Output Configuration: Inline Solid Shaft
• Nominal Ratio: 10
• Box Width: 6.42 inches
• Weight: 27.5 LB
• EAN or UPC: 782476023751
