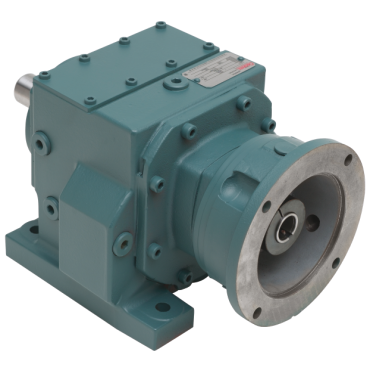

Dodge H3C56S00477 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H3C56S00477 is a Quantis ILH C-Face Inline Helical Reducer designed for efficient performance in various industrial applications. It features a modular design and is built to handle higher torque ratings. The compact housing makes it suitable for tight spaces while being dimensionally interchangeable with major competitors.

• Clamps collar input for secure attachment
• Single solid shaft output for reliable power transfer
• Constructed from class 30 gray iron for added strength

Product Highlights

This helical reducer is ideal for applications in manufacturing and mechanical systems requiring precision and durability.

Product Information

Standard Information

• Brand: Dodge
• MPN: H3C56S00477

Technical Specifications

• Input (Shaft or Bore) Size: 5/8 in
• Output RPM @ 1750 rpm Input: 367 rpm
• Output Configuration: Inline Solid Shaft
• Unit Size: 38
• No. of Reductions: 2
• Nominal Ratio: 5
• Frame: 56C
• Output (Shaft or Bore) Size: 1 in
• Bolt Pattern: 5.12 x 4.33
• Weight: 55.0 LB
• Housing Material: Cast Iron
• Lubrication: Mineral Mobil 600
• Box Width: 6.42 in
• Box Height: 6.21 in
• Box Length: 8.98 in
