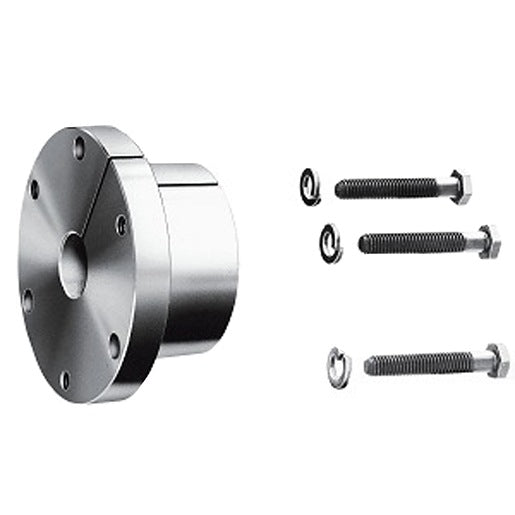

Dodge FX100MM QD Bushing

Product Description

Dodge FX100MM is a QD bushing designed for applications requiring precise fitment and torque management. This product is essential for ensuring reliable machinery function.

• QD Bushing with a bore size of 100 mm
• Constructed from ductile iron for durability
• Easy installation with three cap screws

Product Highlights

The Dodge FX100MM provides a robust solution for connecting a shaft to a driven component, ensuring effective power transmission in mechanical setups.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 105034763

Technical Specifications

• Weight: 7.3 lb
• Bore Size: 3.937 in - 100 mm
• Material: Ductile Iron
• Torque Capacity: 30000 lb/in
• Bolt Circle Diameter: 5 5/8 in
• Overall Length: 4.4375 in
• Length Through Bore: 3.625 in
• Flange Thickness: 0.8125 in
• Wrench Torque: 75 lbf
• Bushing Series: F
• Cap Screws: 3
• Capscrew Size: 9/16 x 3 5/8
