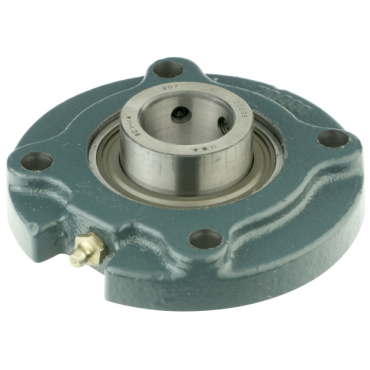

Dodge FCSC112 Flange-Mount Ball Bearing Unit - 1-3/4 in Bore, 4-Bolt Piloted Flange Mount

Product Description

The Dodge Flange-Mount Ball Bearing Unit with MPN FCSC112 features a one inch and three-fourths bore. It is designed for standard-duty applications with a four-bolt piloted flange mount, ensuring stability during operation.

• Cast iron housing material
• Single lip contact seal for enhanced protection
• Set screw locking for secure attachment

Product Highlights

This product is ideal for use in various machinery and industrial applications that require reliable and efficient performance.

Product Information

Standard Information

• Country of Origin: United States
• Min Order Qty: 1

Technical Specifications

• Bore Diameter: 1-3/4 in
• Bore Length: 1.94 in
• Grease Type: Unirex N2
• Maximum Speed: 300 rpm
• Radial Static Load Capacity: 4906 lbf
• Radial Dynamic Load Capacity: 7891 lbf
• Type of Bearing: Ball
• Housing Material: Cast Iron
• Duty Type: Standard Duty
• Locking Device: Set Screw
• Relubricatable: Yes
• Expansion Type: Non-Expansion Bearing (Fixed)
• Sensor Ready: Adapter Required
• Insert Material: Steel
