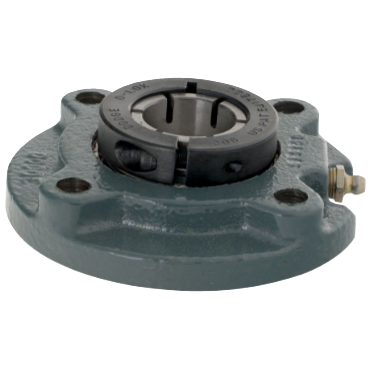

Dodge FCDL107 Flange-Mount Ball Bearing Unit - 1-7/16 in Bore - 4-Bolt Piloted Flange Mount

Product Description

The Dodge FCDL107 is a flange-mount ball bearing unit designed for reliable performance in various applications. It features a bore diameter of one and seven-sixteenths inches and a four-bolt piloted flange mount. This unit uses a clamp collar locking method and is made of durable cast iron housing material. It is suitable for fixed applications and includes a single lip contact seal to protect against contaminants.

• Bore diameter: 1-7/16 inches
• Max speed: 5500 rpm
• Radial dynamic load capacity: 5759 lbf

Product Highlights

This bearing unit is ideal for industrial equipment and machinery. It is designed to withstand heavy loads while providing smooth and efficient operation.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: FCDL107
• Bore type: Straight
• Seal type: Single lip contact seal
• Grease type: Unirex N2
• Insert material: Steel
• Housing material: Cast iron
• Weight: 3.805 lbs
• Dimensions: 5.35 in (L) x 6 in (W) x 6.15 in (H)
