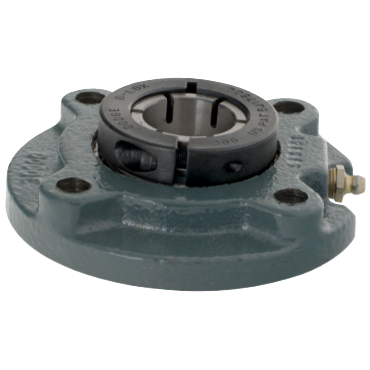

Dodge FCDL106 Flange-Mount Ball Bearing Unit - 1-3/8 in Bore - 4-Bolt Piloted Flange Mount

Product Description

The Dodge FCDL106 is a flange-mount ball bearing unit with a bore size of 1-3/8 inches. This unit features a 4-bolt piloted flange mount for secure installation. The clamp collar locking mechanism ensures a stable grip and prevents any movement. The housing is made from cast iron, providing durability and strength for various applications.

• Bore Diameter: 1-3/8 inches
• Radial Dynamic Load Capacity: 5759 lbf
• Radial Static Load Capacity: 3461 lbf

Product Highlights

This flange-mount ball bearing unit is suitable for use in fixed applications, making it ideal for machinery and equipment requiring reliable rotation. It is designed to handle significant loads while maintaining performance.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Manufacturer Catalog Number: 128811
• Type Of Bearing: Ball
• Bearing Series: 207 Series
• Shaft Attachment: Clamp Collar
• Bolt Circle Diameter: 4.1300 inches
• Bore Length: 1.75 inches
• Relubricatable: Yes
• Expansion Capability: Non-Expansion (Fixed)
