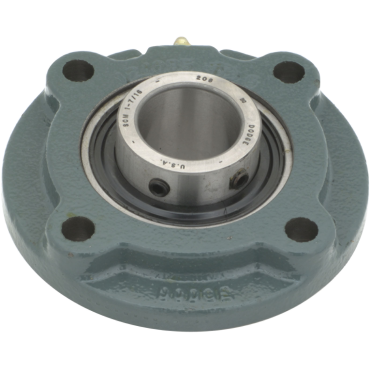

Dodge FC-SCM-307 Flange-Mount Ball Bearing Unit 3-7/16 in Bore 4-Bolt Piloted Flange Mount 00250

Product Description

The Dodge FC-SCM-307 is a flange-mount ball bearing unit designed for fixed applications with a bore diameter of three and seven sixteenths inches. This unit features a four-bolt piloted flange mount and uses a set screw for locking. The housing is made of cast iron, which provides durability.

• Non-expansion bearing design
• Compatible with Unirex N2 grease lubricant
• Maximum speed of one thousand RPM

Product Highlights

The FC-SCM-307 is suitable for medium-duty applications and includes a single-lip contact seal to reduce contamination.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: FC-SCM-307
• Bore Diameter: 3-7/16 in
• Bore Length: 2.56 in
• Weight: 24.95
• Length: 10.5 in
• Width: 10.3 in
• Height: 4.1 in
• Radial Static Load Capacity: 16641 lbf
• Radial Dynamic Load Capacity: 21451 lbf
• Maximum Speed: 1000 RPM
• Seal Type: Single Lip Contact Seal
• Locking Device: Set Screw
• Duty Type: Medium Duty
• Insert Material: Steel
• Housing Material: Cast Iron
