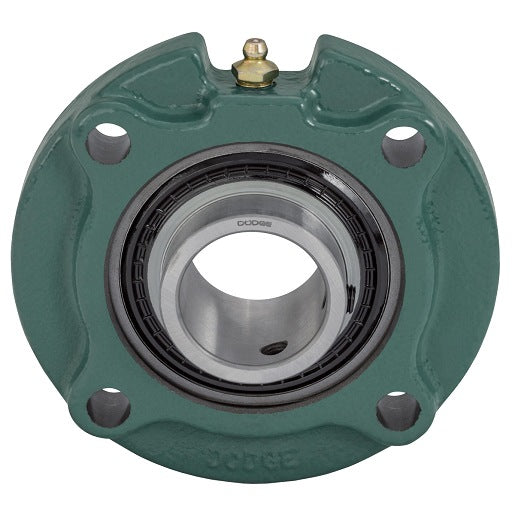

Dodge FC-SCM-207-HT Flange-Mount Ball Bearing Unit - 2-7/16 in Bore - Replacement MPN FC-SCM-207-HT

Product Description

The Dodge FC-SCM-207-HT is a flange-mount ball bearing unit designed for durability and efficiency. This unit features a bore diameter of two and seven-sixteenths inches and comes with a solid cast iron housing for strength and support. Its design includes a piloted flange and a setscrew locking mechanism, providing reliable operation in various applications.

• Shaft diameter: 2.438 inches
• Seal type: Labyrinth
• Suitable for high-temperature environments

Product Highlights

This product is effective in medium-duty applications where robust bearing support is needed. The Dodge FC-SCM-207-HT can be utilized in manufacturing, agricultural machinery, and any systems requiring reliable motion support.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FC-SCM-207-HT

Technical Specifications

• Housing Material: Cast Iron
• Insert Material: Steel
• Seal Type: Labyrinth
• Pilot Diameter: 5.5 inches
• Bore Length: 2.54 inches
• Flange Type: Piloted Flange
• Ball Bearing Series: 214 Series
• Housing Construction: Solid
• Bolt Circle Diameter: 6.5 inches
• Grease Name: Krytox GPL 206
• Pilot Depth: 1.13 inches
• Shaft Diameter: 2.438 inches
• Bolt Diameter: 0.5 inches
• Expansion Capability: Fixed
• Locking Device: Setscrew
• Sensor Ready: Adapter Required
• Bearing Type: Ball
• Greasable: Yes
• Suitable for High Temperature: Yes
• Standoff Housing: No
• Lubrication: Grease
• Weight: 11.9 LB
• EAN or UPC: 782476796617
