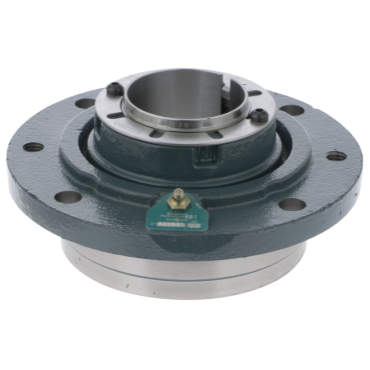

Dodge FC-IP-207RE Greasable Piloted Flange Unit

Product Description

The Dodge FC-IP-207RE is a greasable piloted flange unit designed for reliable performance in various applications.

• 2.438 inch shaft diameter
• Solid housing construction
• Maximum speed of 2400 RPM

Product Highlights

This flange unit is suitable for applications requiring high load capacities and offers ease of maintenance with its grease lubrication feature.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FC-IP-207RE

Technical Specifications

• Flange Type: Piloted Flange
• Sensor Ready: Yes
• Bolt Diameter: 0.5 inch
• Speed [Max]: 2400 RPM
• Housing Construction: Solid
• Pilot Diameter: 5.5 inch
• Greasable: Yes
• Locking Device: Push-Pull Adapter
• Lubrication: Grease
• Expansion Capability: Float
• Insert Material: Steel
• Bore Length: 3.42 inch
• Grease Name: MobilGrease XHP222
• Bearing Type: Spherical Roller
• Bolt Circle Diameter: 6.5 inch
• Static Load Capacity: 47500 lbf
• Dynamic Load Capacity: 39000 lbf
• Bearing Component: Mounted Bearing
• Pilot Depth: 1.56 inch
• Shaft Diameter: 2.438 inch
• Housing Dimensional Standard: S-2000
• Weight: 13.88 lbs
• EAN or UPC: 782475310470
