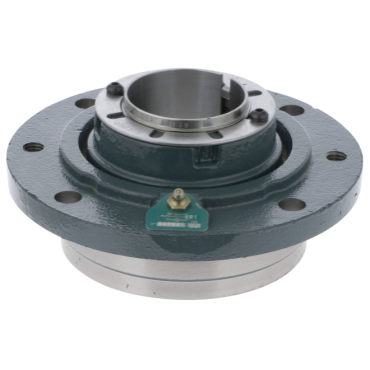

Dodge FC-IP-207R Greasable Piloted Flange Unit

Product Description

The Dodge FC-IP-207R is a greasable piloted flange unit designed for reliable performance in various applications. This unit features a solid housing construction that enhances durability and stability. The flange type is piloted, allowing for precise alignment in installations.

• 2.438 in shaft diameter
• Grease lubrication type
• Maximum speed of 2400 rpm

Product Highlights

This bearing unit is sensor ready and includes a push-pull adapter locking device for easy assembly. It is suitable for use in various industrial settings where a robust and efficient bearing solution is required.

Product Information

Standard Information

• Brand: Dodge
• MPN: FC-IP-207R

Technical Specifications

• Flange Type: Piloted Flange
• Sensor Ready: Yes
• Bolt Diameter: 0.5 in
• Insert Material: Steel
• Speed [Max]: 2400 rpm
• Bore Length: 3.42 in
• Bearing Component: Mounted Bearing
• Expansion Capability: Fixed
• Locking Device: Push-Pull Adapter
• Lubrication: Grease
• Pilot Diameter: 5.5 in
• Shaft Diameter: 2.438 in
• Housing Construction: Solid
• Grease Name: MobilGrease XHP222
• Housing Dimensional Standard: S-2000
• Pilot Depth: 1.56 in
• Bolt Circle Diameter: 6.5 in
• Greasable: Yes
• Bearing Type: Spherical Roller
• Static Load Capacity: 47500 lbf
• Dynamic Load Capacity: 39000 lbf
• Weight: 14.36 lb
• EAN or UPC: 782475310210
