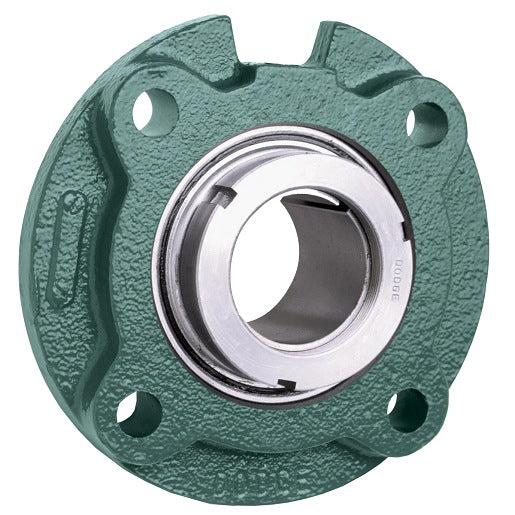

Dodge FC-GTM-108L Cast Iron Greasable Piloted Flange Unit

Product Description

The Dodge FC-GTM-108L is a cast iron greasable piloted flange unit designed for reliable performance in various applications. It features a shaft diameter of one point five inches and is known for its solid housing construction. This flange unit is suitable for multiple mounting configurations and ensures a stable connection in mechanical systems.

• 1.5-inch shaft diameter
• Cast iron housing material
• Grease lubrication system

Product Highlights

The FC-GTM-108L excels in durability and ease of maintenance, making it ideal for industrial environments where reliability is critical.

Product Information

Standard Information

• Brand: Dodge
• MPN: FC-GTM-108L

Technical Specifications

• Housing Material: Cast Iron
• Sensor Ready: Adapter Required
• Expansion Capability: Fixed
• Pilot Depth: 0.44 inches
• Suitable For Washdown: No
• Greasable: Yes
• Bolt Circle Diameter: 1.85 inches
• Bore Length: 1.85 inches
• Lubrication: Grease
• Locking Device: Push-Pull Adapter
• Flange Type: Piloted Flange
• Pilot Diameter: 4 inches
• Bearing Type: Ball
• Shaft Diameter: 1.5 inches
• Insert Material: Steel
• Weight: 5.28 pounds
• EAN or UPC: 782475895458
