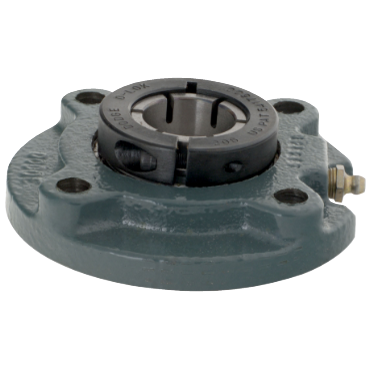

Dodge FC-DL-104 Flange-Mount Ball Bearing Unit 1-1/4 in Bore 4-Bolt Piloted Flange Mount Replacement MPN

Product Description

The Dodge FC-DL-104 Flange-Mount Ball Bearing Unit is designed for various applications that require reliable performance. It features a bore size of one and one-quarter inches and a four-bolt piloted flange mount for secure installation.

• Clamp collar locking system ensures a firm grip.
• Constructed from durable cast iron housing material.
• Non-expansion bearing design suitable for fixed applications.

Product Highlights

This bearing unit is ideal for high-load applications, offering a maximum speed of five thousand five hundred rpm. It also comes with a single lip contact seal for effective protection against dirt and moisture.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: FC-DL-104
• Bore Diameter: 1-1/4 inches
• Bore Length: 1.75 inches
• Weight: 4.4 lbs
• Height: 2.4 inches
• Length: 5.3 inches
• Width: 6.5 inches
• Maximum Speed: 5500 rpm
• Radial Dynamic Load Capacity: 5759 lbf
• Radial Static Load Capacity: 3461 lbf
• Lubrication: Grease
• Grease Type: Unirex N2
• Locking Device: Clamp Collar
• Housing Material: Cast Iron
• Insert Material: Steel
• Type of Bearing: Ball
• Relubricatable: Yes
• Expansion Type: Non-Expansion Bearing (Fixed)
• Standoff Included: No
