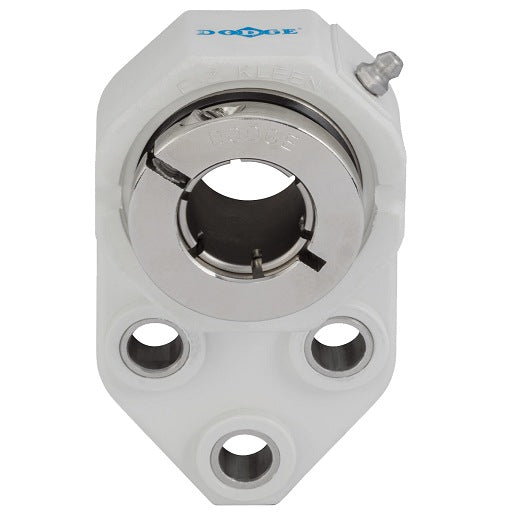

Dodge FBDLEZ104SPCR D-Lok DLEZ E-Z Kleen Series Normal-Duty Polymer-Housed 3-Bolt Flange Unit

Product Description

The Dodge FBDLEZ104SPCR is a D-Lok DLEZ E-Z Kleen Series Normal-Duty Polymer-Housed 3-Bolt Flange Unit. This product features a corrosion-resistant polymer housing, designed for various applications including food and beverage, pharmaceutical packaging, and processing industries. It operates effectively in wet and cold environments.

• Constructed of a corrosion-resistant polymer material.
• Features a concentric clamp collar for secure attachment to the shaft.
• Equipped with regreasable contact seals for enhanced durability.

Product Highlights

The unit is suitable for environments that require high resistance to moisture and cold. Its design minimizes wear and enhances performance in demanding applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: FBDLEZ104SPCR

Technical Specifications

• Seal Type: Contact Seals
• Flange Type: 3-Bolt Flange, Flange Bracket
• Inch/Metric: Inch
• Housing Width: 1 1/8 in
• Bearing Type: Ball Bearing
• Shaft Diameter: 1.25 in
• Bracket Length: 2 3/4 in
• Misalignment Range: ±2°
• Bolt Size: 3/8 in
• Flange Thickness: 3/8 in
• Mounted Unit Duty: Corrosion Resistant-Duty
• Length Through Bore: 1.5625 in
• Center Line to Bolt Holes: 2 1/16 in
• Housing Height: 3 1/4 in
• Overall Width: 1 21/32 in
• Short Bolt Hole Spacing: 1 1/4 in
• End Type: Open End
• Housing Length: 5 3/8 in
• Housing Material: Polymer
• Locking Device: Concentric Clamp Collar
• Long Bolt Hole Spacing: 1 7/8 in
• Lubrication: Relubricatable
• Weight: 1.39 LB
• EAN or UPC: 782475985968
