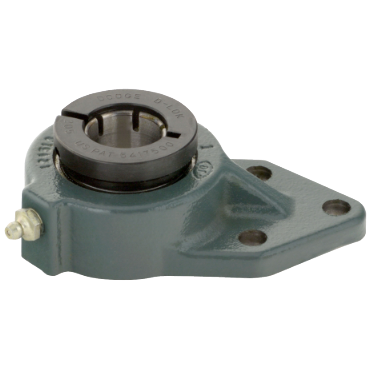

Dodge FBDL106 D-Lok DL Series Normal-Duty Cast Iron 3-Bolt Flange Bracket

Product Description

The Dodge FBDL106 is a D-Lok DL Series normal-duty cast iron 3-bolt flange bracket. This bracket is designed for use with shafts that have a diameter of one and three-eighths inches. The construction features a robust cast iron housing that ensures durability in various applications.

• Compatible with air handling and food handling systems
• Designed for ease of installation with solid feet for dowel pins
• Features a regreasable sealing system for extended lifespan

Product Highlights

This flange bracket is suitable for various industrial applications including air handling and food processing.

Product Information

Standard Information

• Brand: Dodge
• MPN: FBDL106

Technical Specifications

• Bracket Length: 3.25 inches
• Housing Width: 1.3125 inches
• Flange Thickness: 0.5 inches
• Bearing Type: Ball Bearing
• Housing Length: 6.125 inches
• End Type: Open End
• Housing Material: Cast Iron
• Shaft Diameter: 1.375 inches
