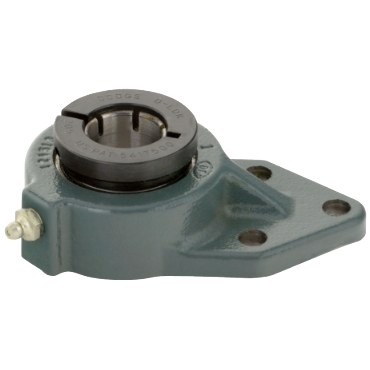

Dodge FBDL103 D-Lok DL Series Normal Duty Cast Iron 3-Bolt Flange Bracket

Product Description

The Dodge FBDL103 is a D-Lok DL Series normal-duty cast iron 3-bolt flange bracket. It is designed for mounting ball bearings securely. This bracket allows for easy installation and provides support for shafts of one and three-sixteenth inches in diameter.

• Normal-duty design for standard applications
• Steel housing ensures longevity
• Concentric clamp collar locks the bearing in place

Product Highlights

This flange bracket is suitable for use in various settings including air handling and food processing environments.

Product Information

Standard Information

• Product Type: Flange Bracket
• Brand: Dodge

Technical Specifications

• Mounted Unit Duty: Normal-Duty
• Shaft Diameter: 1.1875 inches
• Bolt Size: 3/8 inches
• Flange Type: 3-Bolt Flange
• Housing Material: Cast Iron
• Length Through Bore: 1.5625 inches
• Overall Width: 1.625 inches
• Weight: 2.42 pounds
