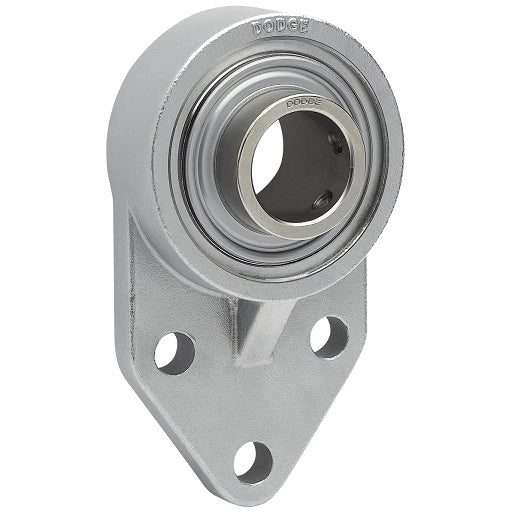

Dodge FB-SCFS-104S-SHFS | Food Grade Flanged Bracket Ball Bearing Unit | 1-1/4 in Bore | 3-Bolt Bracket Mount

Product Description

Dodge FB-SCFS-104S-SHFS is a food-grade flanged bracket ball bearing unit. It features a one and one-quarter inch bore and uses a three-bolt bracket mount for secure installation. This unit is designed for standard duty applications and provides reliable performance in various environments.

• Food grade grease lubrication
• Stainless steel housing for corrosion resistance
• Hydro Armor seal for enhanced protection

Product Highlights

This ball bearing unit is suitable for areas requiring cleanliness and durability. The stainless steel construction makes it resilient in harsh conditions.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FB-SCFS-104S-SHFS

Technical Specifications

• Bore Diameter: 1-1/4 inches
• Overall Width: 2.75 inches
• Overall Height: 1.59 inches
• Overall Length: 5.31 inches
• Weight: 1.95 lbs
• Max RPM: 975 rpm
• Locking Device: Set Screw
• Seal Type: Hydro Armor
• Material: Stainless Steel
