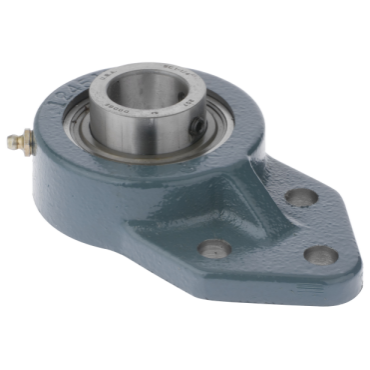

Dodge FB-SC-200 Flange-Mount Ball Bearing Unit - 2 in Bore, 3-Bolt Bracket Mount, Set Screw Locking, Cast Iron Housing Material

Product Description

The Dodge FB-SC-200 is a flange-mount ball bearing unit designed for applications requiring reliable support and rotation functionality. This unit features a two-inch bore and comes with a three-bolt bracket mount. Constructed with cast iron housing, it ensures durability and strength. Ideal for standard-duty use, this unit supports an effective sealing system for various industrial environments.

• Two-inch bore with a three-bolt bracket mount.
• Durable cast iron housing material.
• Designed with a setscrew locking mechanism.

Product Highlights

This flange-mount unit is suitable for a variety of applications including air and unit handling, as well as in food and beverage processing. It is engineered for longevity with features that minimize wear and increase operational efficiency.

Product Information

Standard Information

• Brand: Dodge
• MPN: FB-SC-200

Technical Specifications

• Locking Device: Setscrew Locking Collar
• Lubrication: Relubricatable
• Housing Length: 7.5 inches
• Bearing Type: Ball Bearing
• Housing Material: Cast Iron
• Center Line to Bolt Holes: 2.9375 inches
• Housing Width: 1.5 inches
• Overall Width: 2.03125 inches
• Length Through Bore: 1.75 inches
• Seal Type: Contact Seals
• Flange Type: 3-Bolt Flange
• Shaft Diameter: 2 inches
• Mounted Unit Duty: Normal-Duty
• Weight: 100.55 pounds
