Dodge FB-SC-104S SC Series Normal-Duty 3-Bolt Cast Iron Flange Bracket

Product Description

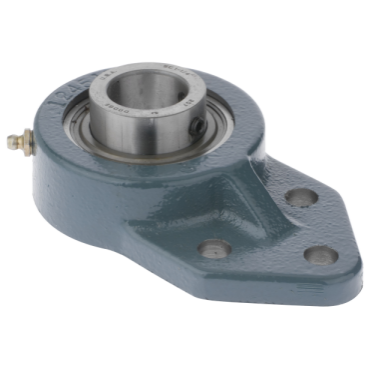

The Dodge FB-SC-104S is a SC Series Normal-Duty 3-Bolt Cast Iron Flange Bracket designed for effective mounting solutions. This flange bracket accommodates a shaft diameter of one and one-fourth inches, providing reliable support in various applications.

• 3-Bolt configuration for secure fastening
• Cast iron material resistant to wear
• Setscrew locking collar for dependable operation

Product Highlights

The Dodge FB-SC-104S is suitable for diverse applications, including air handling, food and beverage processing, and automotive maintenance. Its durable design ensures long-lasting performance and less vibration during operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: FB-SC-104S

Technical Specifications

• Mounted Unit Duty: Normal-Duty
• Flange Type: 3-Bolt Flange, Flange Bracket
• Lubrication: Relubricatable
• Housing Material: Cast Iron
• Length Through Bore: 1.39063 inches
• Housing Width: 1 1/8 inches
• Bearing Type: Ball Bearing
• Center Line to Bolt Holes: 2 1/16 inches
• Bolt Size: 3/8 inches
• Flange Thickness: 3/8 inches
• Locking Device: Setscrew Locking Collar
• Overall Width: 1 5/8 inches
• Long Bolt Hole Spacing: 1 7/8 inches
• Short Bolt Hole Spacing: 1 1/4 inches
• End Type: Open End
• Seal Type: Contact Seals
• Shaft Diameter: 1.25 inches
• Housing Height: 3 1/4 inches
• Inch/Metric: Inch
• Bracket Length: 2 3/4 inches
• Housing Length: 5 3/8 inches
• Weight: 2.11 pounds
• EAN or UPC: 782475512133
