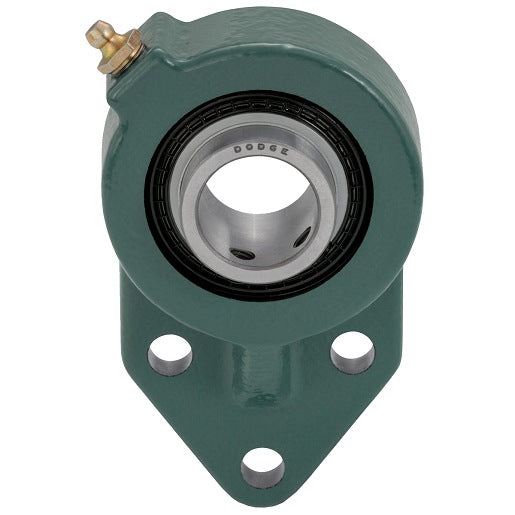

Dodge FB-SC-100 Flange-Mount Ball Bearing Unit - 1 in Bore, 3-Bolt Bracket Mount, Set Screw Locking

Product Description

The Dodge FB-SC-100 is a flange-mount ball bearing unit with a one-inch bore. It features a three-bolt bracket mount and set screw locking mechanism. This bearing is designed for normal-duty applications and is constructed of cast iron housing material, ensuring durability and longevity.

• 1 inch bore size
• 3-bolt flange mount
• Set screw locking

Product Highlights

This bearing unit is ideal for fixed applications. It is suitable for use in various settings including industrial and manufacturing environments where reliability is essential.

Product Information

Standard Information

• Brand: Dodge
• MPN: FB-SC-100
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 1 inch
• Bore Length: 1.34 in
• Length: 5.8 in
• Width: 3.1 in
• Height: 1.8 in
• Weight: 1.75 lbs
• Maximum Speed: 4500 rpm
• Radial Dynamic Load Capacity: 3146 lbf
• Seal Type: Single Lip Contact Seal
• Duty Type: Standard Duty
• Locking Device: Set Screw
• Insert Material: Steel
• Housing Material: Cast Iron
