Dodge FB-DL-104S-NL Flange-Mount Ball Bearing Unit 1-1/4 in Bore Replacement MPN

Product Description

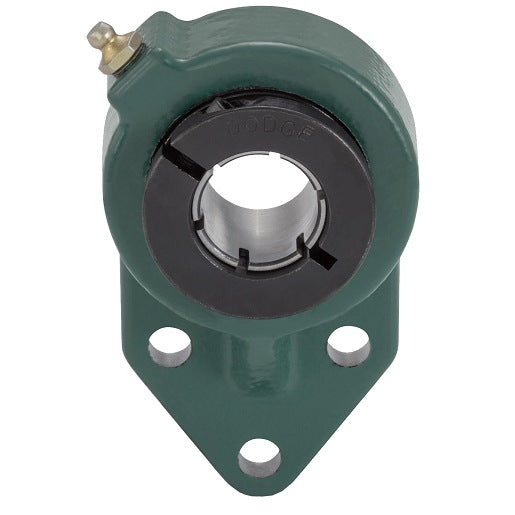

The Dodge FB-DL-104S-NL is a flange-mount ball bearing unit designed for reliable performance in various applications. This bearing features a one and one-fourth inch bore and a three-bolt bracket mount for secure installation. The unit comes in a cast iron housing which provides strength and durability for heavy-duty use.

• Designed for a one and one-fourth inch bore diameter.
• Clamp collar locking for secure shaft attachment.
• Single lip contact seal to protect against contaminants.

Product Highlights

This product is essential for systems that require stable and robust support, especially in high-speed operations. Its installation is straightforward, making it suitable for various machinery in industrial settings.

Product Information

Standard Information

• Brand: Dodge
• MPN: FB-DL-104S-NL

Technical Specifications

• Bore Diameter: 1-1/4 inches
• Bore Length: 1.56 inches
• Maximum Speed: 5500 rpm
• Weight: 2.4 lbs
• Height: 2.05 inches
• Length: 6.75 inches
• Width: 3.6 inches
• Housing Material: Cast Iron
