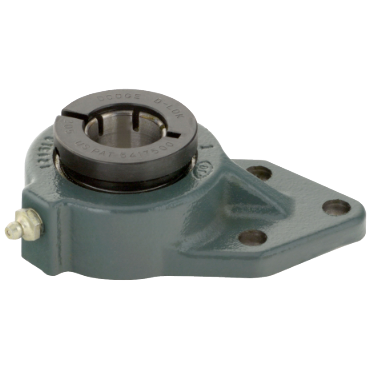

Dodge FB-DL-104S D-Lok DL Series Normal-Duty Cast Iron 3-Bolt Flange Bracket

Product Description

The Dodge FB-DL-104S is a normal-duty cast iron 3-bolt flange bracket designed for mounting applications. This product provides a durable solution for supporting rotating shafts in various machines.

• Compatible with 1 1/4 inch shafts
• Made with cast iron for strength
• Features concentric clamp collar for secure attachment

Product Highlights

Easy installation aligns perfectly with dowel pins, reducing installation time. The rugged construction ensures reliable operation in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FB-DL-104S

Technical Specifications

• Housing Width: 1 1/8 in
• Housing Height: 3 1/4 in
• Overall Width: 1 21/32 in
• Long Bolt Hole Spacing: 1 7/8 in
• Length Through Bore: 1.5625 in
• Bolt Size: 3/8 in
• Housing Material: Cast Iron
• Short Bolt Hole Spacing: 1 1/4 in
• Mounted Unit Duty: Normal-Duty
• Lubrication: Relubricatable
• Seal Type: Contact Seals
• Bracket Length: 2 3/4 in
• Shaft Diameter: 1.25 in
• Bearing Type: Ball Bearing
• Flange Thickness: 3/8 in
• Weight: 2.36 lb
• UPC: 782475891702
