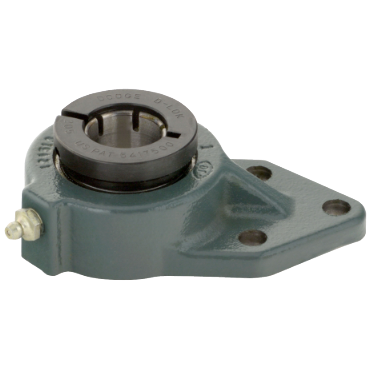

Dodge FB-DL-100 D-Lok DL Series Normal-Duty Cast Iron 3-Bolt Flange Bracket

Brand: DODGE
SKU: FB-DL-100
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Dodge FB-DL-100 is a D-Lok DL Series normal-duty cast iron 3-bolt flange bracket. This bracket is designed to provide reliable support in various applications such as air handling, food processing, and more.

  • Designed for use with a one-inch shaft
  • Constructed from durable cast iron
  • Includes concentric clamp collar for secure installation

Product Highlights

This flange bracket features a regreasable design for improved maintenance and a dual sealing system that protects against contaminants.

Product Information

Standard Information

  • Brand: Dodge
  • MPN: FB-DL-100
Technical Specifications
Overall Width
1 39/64 inches
Mounted Unit Duty
Normal-Duty
Length Through Bore
1.4375 inches
Bearing Type
Ball Bearing
Long Bolt Hole Spacing
1 5/8 inches
Housing Length
4 3/4 inches
Short Bolt Hole Spacing
1 1/8 inches
Lubrication
Relubricatable
Bracket Length
2 1/2 inches
Housing Material
Cast Iron
Misalignment Range
±2 degrees
Shaft Diameter
1 inch
Housing Height
2 3/4 inches
Seal Type
Contact Seals
Flange Type
3-Bolt Flange, Flange Bracket
Weight
1.87 pounds
