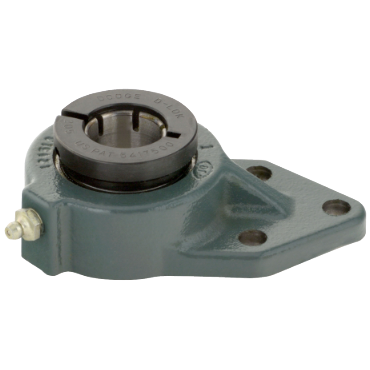

Dodge FB-DL-012 D-Lok DL Series Normal-Duty Cast Iron 3-Bolt Flange Bracket

Product Description

The Dodge FB-DL-012 is a D-Lok DL Series normal-duty cast iron 3-bolt flange bracket designed for reliable support and alignment in various applications. This product is suitable for air handling, unit handling, food processing, and paper manufacturing.

• Offers a concentric clamp collar for secure attachment.
• Features an inner and outer ring that is precision hardened for wear resistance.
• Constructed with a cast iron housing for durability.

Product Highlights

It includes a regreasable design with contact seals to protect against contaminants, ensuring optimal performance in demanding conditions.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FB-DL-012

Technical Specifications

• Seal Type: Contact Seals
• Overall Width: 1 13/32 inches
• Mounted Unit Duty: Normal-Duty
• Housing Material: Cast Iron
• Housing Height: 2 1/2 inches
• Housing Width: 63/64 inches
• Misalignment Range: ±2°
• Bearing Type: Ball Bearing
