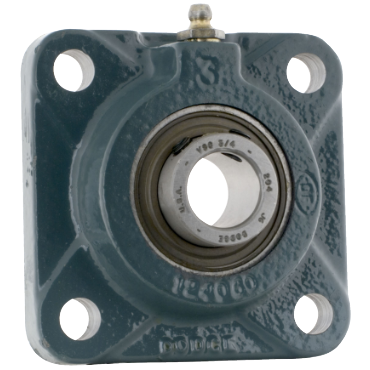

Dodge F4BVSC200L Flange-Mount Ball Bearing Unit - 2 in Bore 4-Bolt Flange Mount Replacement MPN

Product Description

The Dodge F4BVSC200L is a flange-mount ball bearing unit designed for efficient performance in various applications. This unit features a two-inch bore, set screw locking, and a four-bolt flange mount for easy installation. Built with a cast iron housing, it ensures durability and reliable operation.

• Standard duty rating for versatility in use.
• Single lip contact seal for protection against contamination.
• Non-expansion bearing type is fixed for stable performance.

Product Highlights

This bearing unit is ideal for industrial and commercial applications requiring dependable support and movement.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: F4BVSC200L
• Bore Diameter: 2 in
• Bore Length: 2.22 in
• Weight: 8.62 lbs
• Housing Material: Cast Iron
• Seal Type: Single Lip Contact Seal
• Maximum Speed: 2500 rpm
• Radial Dynamic Load Capacity: 9755 lbf
• Radial Static Load Capacity: 6588 lbf
• Locking Device: Set Screw
• Grease Type: Unirex N2
• Type Of Bearing: Ball
