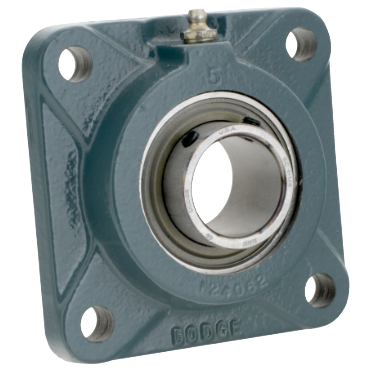

Dodge F4BSC55M Flange-Mount Ball Bearing Unit 55 mm Bore Replacement MPN

Product Description

The Dodge F4BSC55M is a Flange-Mount Ball Bearing Unit designed with a bore diameter of fifty-five millimeters. This unit features a four-bolt flange mount and employs a set screw locking mechanism. The housing is made from durable cast iron material. This bearing is non-expansion and intended for fixed settings, making it suitable for standard duty applications.

• 55 mm bore diameter
• Standard duty rating
• Set screw shaft attachment

Product Highlights

The Dodge F4BSC55M is ideal for various machinery and assembly tasks where reliable support for rotating shafts is critical.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Length: 2.22 inches
• Bearing Series: 211 Series
• Radial Static Load Capacity: 6588 lbf
• Radial Dynamic Load Capacity: 9755 lbf
• Type of Bearing: Ball
• Relubricatable: Yes
• Grease Type: Unirex N2
• Expansion Capability: Non-Expansion (Fixed)
