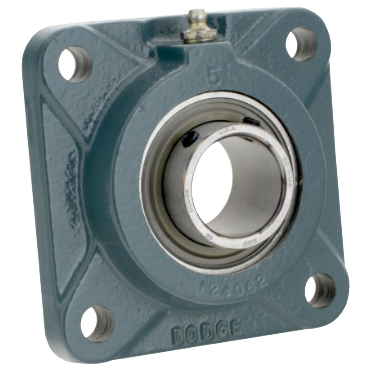

Dodge F4BSC50M Flange-Mount Ball Bearing Unit - 50 mm Bore, 4-Bolt Flange Mount, Replacement MPN F4B-SC-50M

Product Description

The Dodge F4BSC50M is a flange-mount ball bearing unit designed for reliable performance in various applications. With a bore diameter of fifty millimeters, this unit features a four-bolt flange mount for easy installation. The cast iron housing provides durability and strength, while the set screw locking mechanism ensures secure attachment.

• Bore Diameter: 50 mm
• Radial Dynamic Load Capacity: 7891 lbf
• Housing Material: Cast Iron

Product Highlights

This standard duty bearing unit is ideal for applications that require a non-expansion bearing solution.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4BSC50M

Technical Specifications

• Bore Type: Straight
• Maximum Speed: 3000 rpm
• Radial Static Load Capacity: 5213 lbf
• Insert Material: Steel
• Lubrication: Grease
• Seal Type: Single Lip Contact Seal
• Standoff Included: No
• Manufacturer Catalog Number: 125892
