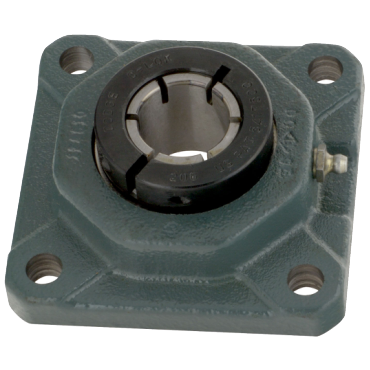

Dodge F4BDLM107 Flange-Mount Ball Bearing Unit 1-7/16 in Bore 4-Bolt Flange Mount 128845

Product Description

The Dodge F4BDLM107 is a flange-mount ball bearing unit designed for durability and efficiency. This model features a bore diameter of 1-7/16 inches and is well-suited for various industrial applications. The four-bolt flange mount ensures secure installation, while the cast iron housing material adds strength.

• Bore Diameter: 1-7/16 inches
• Radial Dynamic Load Capacity: 7332 lbf
• Country of Origin: United States

Product Highlights

This bearing unit is fixed and does not allow expansion, making it ideal for consistent load applications. The single lip contact seal helps to retain lubrication and protect against contaminants.

Product Information

Standard Information

• Brand: Dodge
• Manufacturer Catalog Number: 128845

Technical Specifications

• Product Type: Flange-Mount Ball Bearing Units
• Bore Length: 2.01 inches
• Bearing Series: 208 Series
• Shaft Attachment: Clamp Collar
• Expansion Capability: Non-Expansion (Fixed)
• Relubricatable: Yes
• Radial Static Load Capacity: 4475 lbf
• Grease Type: Unirex N2
