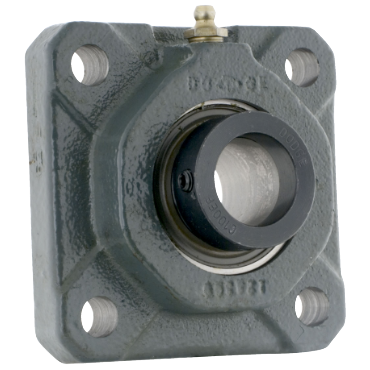

Dodge F4B-SXR-20M Flange-Mount Ball Bearing Unit - 20 mm Bore - 4-Bolt Flange Mount

Product Description

The Dodge F4B-SXR-20M Flange-Mount Ball Bearing Unit provides an effective solution for various applications. With a bore diameter of twenty millimeters, this unit is designed for durability and reliability. The four-bolt flange mount ensures stability during operation. The eccentric collar locking mechanism allows simple installation and adjustment.

• Ball bearing type for smoother rotation
• Non-expansion bearing suitable for fixed applications
• Cast iron housing for improved strength

Product Highlights

This bearing unit is suitable for industrial applications requiring dependable performance. Its design minimizes maintenance needs while ensuring high load capacity.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4BSXR20M
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 20 mm
• Bore Length: 1.55 inches
• Bearing Series: 204 Series
• Radial Static Load Capacity: 1482 lbf
• Radial Dynamic Load Capacity: 2899 lbf
• Relubricatable: Yes
• Expansion Capability: Non-Expansion (Fixed)
• Type Of Bearing: Ball
