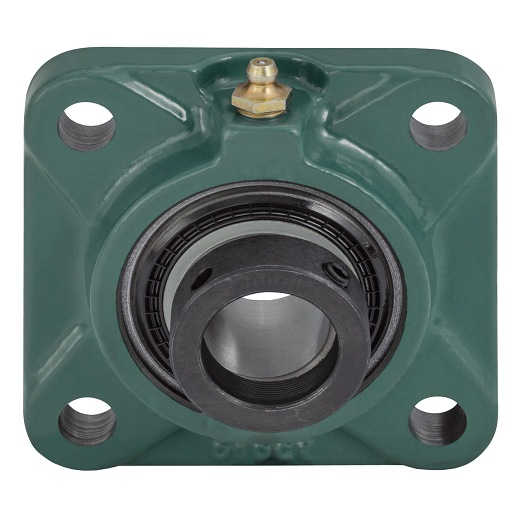

Dodge F4B-SXR-207 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SXR-207 is a cast iron greasable 4-bolt flange unit designed for reliable performance in demanding applications. This unit features a solid housing construction and is designed with four-bolt flange mounting for secure connections. The housing is made of durable cast iron, suitable for various industrial uses.

• 2.438 inch shaft diameter
• Ball bearing type for smooth operation
• Dynamic load capacity of 11,791 lbf

Product Highlights

This flange unit is equipped with an eccentric collar locking device and uses Unirex N2 grease for lubrication. It is engineered for fixed expansion capability and does not support washdown or high temperature operations.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SXR-207

Technical Specifications

• Weight: 10.5 lb
• Bore Length: 2.74 inch
• Max Speed: 2000 rpm
• Bolt Diameter: 0.625 inch
• Static Load Capacity: 8,100 lbf
• Insert Material: Steel
• Flange Type: 4-Bolt Flange
• Locking Device: Eccentric Collar
