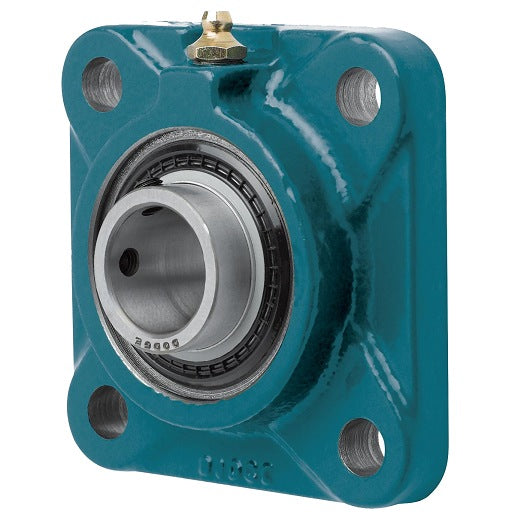

Dodge F4B-SCM-60M Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCM-60M is a cast iron greasable 4-bolt flange unit designed for various mounting applications. This bearing unit features a sixty millimeter shaft diameter and is ideal for medium-duty operations.

• Shaft Diameter: 60 mm
• Dynamic Load Capacity: 13995 lbf
• Solid Housing Construction

Product Highlights

This 4-bolt flange unit offers ease of installation and maintenance while providing robust performance in multiple industrial applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SCM-60M

Technical Specifications

• Locking Device: Setscrew
• Expansion Capability: Fixed
• Ball Bearing Series: 214 Series
• Dynamic Load Capacity: 13995 lbf
• Static Load Capacity: 9838 lbf
• Bolt Diameter: 0.625 in
• Bolt to Bolt (Max): 5.88 in
• Bore Length: 2.54 in
• Housing Material: Cast Iron
• Shaft Diameter: 60 mm
