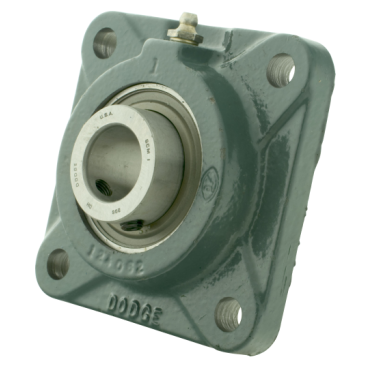

Dodge F4B-SCM-100 Flange-Mount Ball Bearing Unit 1 in Bore 4-Bolt Flange Mount

Product Description

The Dodge F4B-SCM-100 is a flange-mount ball bearing unit designed for medium-duty applications. With a bore diameter of one inch and a robust cast iron housing, it ensures durability and performance in demanding environments. The unit features a four-bolt flange mount that simplifies installation.

• Bore Diameter: 1 inch
• Maximum Speed: 4500 rpm
• Suitable for Medium Duty Applications

Product Highlights

This bearing unit is ideal for various mechanical uses where support and precision are crucial. The set screw locking mechanism enhances stability during operation.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F4B-SCM-100
• Bore Length: 1.52 inches
• Weight: 1.3 lbs
• Seal Type: Single Lip Contact Seal
• Grease Type: Unirex N2
• Duty Type: Medium Duty
• Radial Static Load Capacity: 2538 lbf
• Radial Dynamic Load Capacity: 4368 lbf
