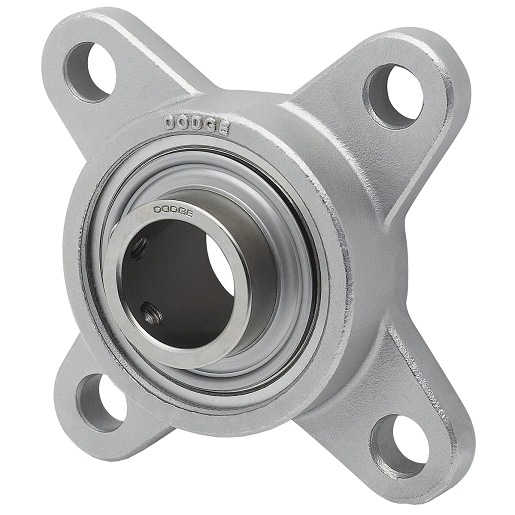

Dodge F4B-SCFS-30M-SHFS Stainless Steel 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCFS-30M-SHFS is a stainless steel 4-bolt flange unit designed for durability and reliability. It features a thirty millimeter shaft diameter and solid housing construction. This unit is ideal for applications requiring a robust flange mount bearing solution.

• Static load capacity of two thousand five hundred thirty-eight lbf
• Dynamic load capacity of four thousand three hundred sixty-eight lbf
• Compatible with MobilGrease FM222 lubrication

Product Highlights

The F4B-SCFS-30M-SHFS is suitable for washdown and comes with a triple-lip contact seal, enhancing its effectiveness in challenging environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 115485732

Technical Specifications

• Bearing Type: Ball
• Flange Type: 4-Bolt Flange
• Bolt to Bolt Minimum: 3.25 inches
• Speed Maximum: 675 rpm
• Bore Length: 1.52 inches
• Bolt Diameter: 0.438 inches
• Seal Type: Triple-Lip Contact
• Insert Material: Plated Stainless Steel
