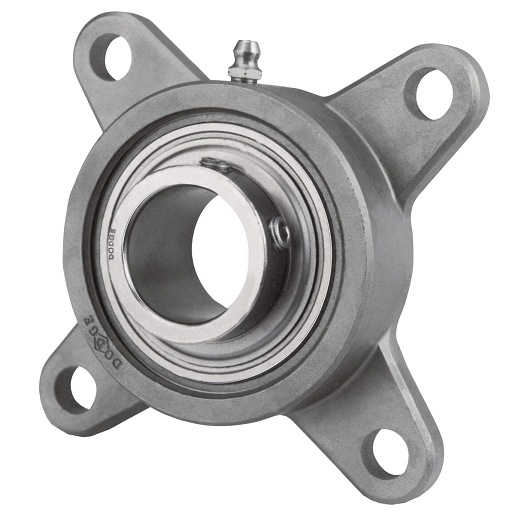

Dodge F4B-SCEZ-108-SH Stainless Steel Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCEZ-108-SH is a stainless steel greasable 4-bolt flange unit designed for various applications. This flange unit features a one and a half inches shaft diameter and solid housing construction suitable for demanding environments.

• Greaseable design for easy maintenance
• Compatible with washdown environments
• Includes a 4-bolt flange for secure mounting

Product Highlights

The unit is robust and built for durability, making it ideal for industrial settings where reliability is critical.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F4B-SCEZ-108-SH

Technical Specifications

• Bearing Type: Ball
• Insert Material: Steel
• Housing Material: Stainless Steel
• Shaft Diameter: 1.5 in
• Bore Length: 1.94 in
• Maximum Speed: 3500 rpm
• Static Load Capacity: 4475 lbf
• Dynamic Load Capacity: 7332 lbf
• Greasable: Yes
• Locking Device: Setscrew
• Suitable for Washdown: Yes
• Expansion Capability: Fixed
