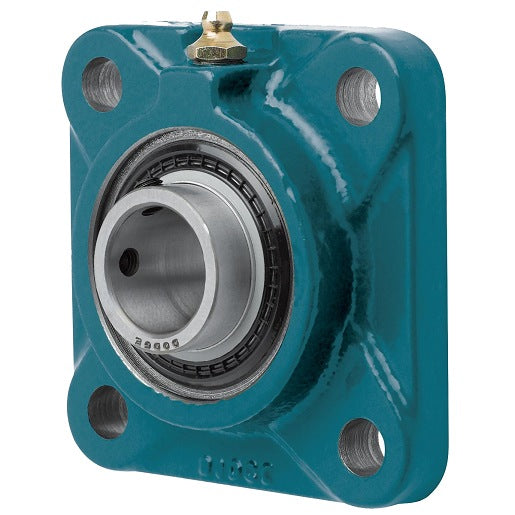

Dodge F4B-SCED-215 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCED-215 is a cast iron greasable 4-bolt flange unit. This bearing unit is designed for heavy-duty applications where a strong, reliable connection is crucial. It features a solid housing construction and a shaft diameter of two point nine three eight inches.

• Shaft Diameter: 2.938 inches
• Static Load Capacity: 11108 lbf
• Dynamic Load Capacity: 14872 lbf

Product Highlights

The F4B-SCED-215 is suitable for varied applications and supports effective load management and operation.

Product Information

Standard Information

• Flange Type: 4-Bolt Flange
• Locking Device: Setscrew

Technical Specifications

• Housing Material: Cast Iron
• Bearing Type: Ball
• Bore Length: 2.33 inches
• Speed [Max]: 1750 rpm
• Grease Name: Mobilith SHC PM 220
• Insert Material: Steel
• Weight: 16.3 lb
• Bolt Diameter: 0.75 inches
