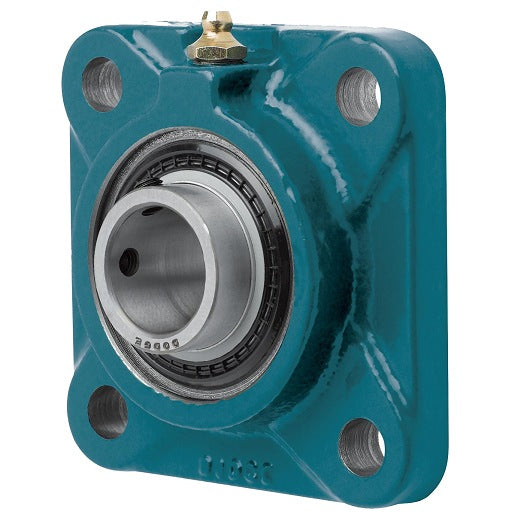

Dodge F4B-SCED-200 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCED-200 is a cast iron greasable 4-bolt flange unit designed for robust applications. This unit features a shaft diameter of two inches and is equipped with a setscrew locking device. It is suitable for standard duty and is built to handle various industrial conditions.

• Two-inch shaft diameter
• Greasable design for easy maintenance
• Robust cast iron housing

Product Highlights

The unit is ideal for mounting where space is limited and requires strong structural integrity. It performs well in applications that involve dynamic loads.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SCED-200

Technical Specifications

• Shaft Diameter: 2 in
• Bolt to Bolt [Max]: 4.38 in
• Locking Device: Setscrew
• Bore Length: 1.94 in
• Ball Bearing Series: 210 Series
• Bearing Type: Ball
• Static Load Capacity: 5213 lbf
• Dynamic Load Capacity: 7891 lbf
• Lubrication: Grease
• Greasable: Yes
• Bolt Diameter: 0.5 in
• Flange Type: 4-Bolt Flange
• Speed [Max]: 3000 rpm
• Housing Material: Cast Iron
• Insert Material: Steel
• Weight: 6.14 LB
• EAN or UPC: 782476479497
